Array Caps

Array Caps are used where arrays of capacitors are needed, usually for decoupling or bypass of GaAs integrated circuits. Standard arrays can contain up to 10 capacitors starting at 0.04pF. Typical overall dimensions range start at 20×10 mils. Array Caps can be fully customized to meet Customers’ application requirements.

Array Caps are available with (B) borders or without borders (A) surrounding the edges to help prevent epoxy shorts and aid optical recognition systems.

The stated capacitance value for the Array Caps is for the value of each individual pad.

Single Layer Capacitors

All Parts Avaliable in Non-Magnetic Termination

Series

Array

Frequency

Up to 30GHz

Capacitance Range

0.4pF to 3300pF

Application

Capacitor Array, Suited for Decoupling, DC Blocking for GaAsICs

Data Sheet

Quotes & Samples

Request

Part Numbering

Example PPI Part Number: PPAB-FS1-4-105x25x4-D4-101-K-2W

Passive Plus	Capacitor Style	Dielectric Code	Number of Capacitors	Length & Width (mils)	Thickness (mils)	Metallization	Capacitance Value	Tolerance	Voltage	Packaging
PP	AB	FS1	4	105×25	4	D4	101	K	2	W
	AB=Array, Border AA=Array, No Border	US3=4500K		L=105 mils W=25 mils	T=4 mils	D4=Ti/Pt/Au (70μin Gold)	101=100pF	K=±10%	2=50V	W=Waffle Pack
	AB=Array, Border AA=Array, No Border	*See Table*		*See Table*	*See Table*	*See Table*	*See Table*	*See Table*	*See Table*	*Standard*

Dielectric Materials

Dielectric Materials – Class I

Dielectrics below consist of material exhibiting very low losses, extremely low or closely controlled temperature coefficients, negligible voltage and frequency coefficients, negligible aging effects, and high insulation and dielectric breakdown.

Type	IR Min. @ 25°C Ω	Temperature Coefficient PPM°C -55 to +125°C	Dissipation Factor (@ 10GHz)	Dielectric Constant (K)	Material
AS1	10¹²	Negligible	0.0001	3.8	Quartz
AS6	10¹²	P120 ± 25	0.0001	8.7	AlN
AS7	10¹²	P180 ± 50	0.0006	9.6	Alumina 96
AS8	10¹²	P180 ± 50	0.0006	9.8	Alumina 99.6
BS2	10¹²	NP0 0 ± 30	0.0001	12.6	Titinate
CS1	10¹²	0 ± 30	0.0010	20	Titinate
ES1	10¹²	0 ± 30	0.0020	40	Titinate
FS1	10¹²	0 ± 30	0.0050	50	Titinate
IS2	10⁴	N750 ± 200	0.0050	85	Alumina
JS2	10⁶	0 ± 30	0.0050	93	Titinate
KS3	10⁶	N1500 ± 500	0.0025	160	Titinate

Dielectric Materials – Class II

Dielectrics below are charcterized by high dielectric constants, increased losses and higher temperature coefficients. These properties are inherent with this class of material but the high dielectric constans permit the use of smaller size to achieve low series inductance and meet dimensional requirements. Capacitors made with these materials are often used for coupling of mictrostrip line circuits where a small chip is necessary. Used as a bypass capacitor, the small size provides low series inductance and dielectric losses are typically of little concern.

Type	IR Min. @ 25°C Ω	Temperature Coefficient % -55 to +125°C	Dissipation Factor (@ 1MHz)	Aging (%) HR/Decade	Dielectric Constant (K)
MS1	10¹¹	-10 to 5	0.010	2.0	300
PS1	10⁴	-10 to 10	0.025	3.0	700
RS2	10⁴	-10 to 10	0.025	3.0	1250
SS3	10¹¹	-10 to 3	0.015	3.5	2200
US1	10⁵	-35 to 0	0.020	3.0	4000
US3	10¹¹	-15 to 15	0.030	3.0	4500
ZS1	10¹¹	-80 to 0	0.025	3.0	11000
ZS4	*	-15 to 15	0.035	3.0	25000
ZS6	*	-15 to 15	0.035	3.0	35000

Other dielectric materials available depending on application requirements. Contact PPI for customization options.

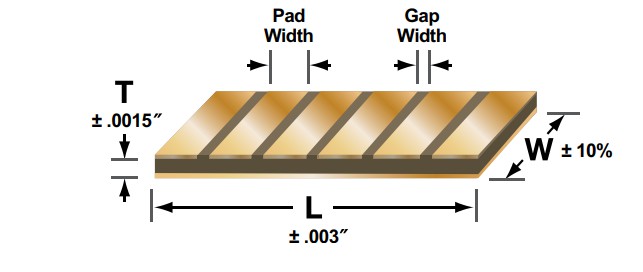

Physical Dimensions

Standard Border is 2 mils and the gap is between 4 – 6 mils depending on the capacitance required.

Length & Width	L or W Tolerance
≤ 10	± 2
11 – 29	± 2
≥ 30	± 3

All dimensions are in mils.

Standard Termination Metallizations

Metallization Codes

Substrates

Gold (D4)*	This metallization consists of a minimum of 70 micro-inches of Gold over Platinum over Nickel which is ideal for wire bonding methodologies.
Silver (S7)*	This metallization consists of 20 micro-inches of Silver over Platinum which is ideal for all solder applications whenever the use of Gold is unacceptable.

Code	Description
D4*	Ti/Pt/Au – Titanium/Platinum/Gold (70μin Gold)
S7*	Ti/Pt/Ag – Titanium/Platinum/Silver (20μin Silver)
K2	Ta/Pd/Au – Tantalum/Palladium/Gold (75μin Gold)
L3	Ta/Pd/Au – Tantalum/Palladium/Gold (100μin Gold)

Substrates can be supplied as follows:
Bare
Metallized	Gold over Platinum, Palladium, or Nickel Silver over Platinum Custom schemes and patterns to Customer specifications
Thickness Range	3 mils +

Capacitance Codes

Value	Code
< 10pF	1R0 = 1.0pF
> 10pF	101 = 100pF
Capacitance Range: 0.06 to 1200pF

Capacitance Tolerance & Dimensional Tolerance Codes

Class I Dielectrics: AS1 – KS2
Tolerance	Code	Tolerance	Code
± .50pF	D	± 20%	M
± .25pF	C	± 15%	L
± .10pF	B	± 10%	K
± .05pF	A	± 5%	J
± .01pF	P	± 3%	H
		± 2%	G

Material	L or W Dimension	Tolerance
AS1-ZS1	< 20 mils	±15%
AS1-ZS1	≥ 20 mils	± 10%

Class II Dielectrics: MS1 – ZS6
Tolerance	Code	Tolerance	Code
-10% thru +40%	Y	± 20%	M
-20% thru +80%	Z	± 15%	L
0% thru +100%	V	± 10%	K
Guaranteed Min. Value	GMV	± 5%	J

Material	L or W Dimension	Tolerance
ZS4-ZS6	< 15 mils	±2 mils
	> 15 mils; ≤ 30 mils	± 3 mils
	> 30 mils	± 5 mils

Rated Voltage Codes

Packaging

Code	Voltage	Dielectric Thickness
2	50V	≤ 5 mils
3	100V	≥ 6 mils

PPI SLCs are available in Waffle Packs (Standard). Other packaging options may be available. Please contact PPI.

Capacitance, Case Size & Dielectric Availability

Class I Dielectric

Class II Dielectric

Cap (pF)	Size mils (mm)
	10×10		12×12		15×15		20×20		25×25		30×30		35×35		40×40		50×50
	(.254 x .254)		(.305 x .305)		(.381 x .381)		(.508 x .508)		(.635 x .635)		(.762 x .762)		(.889 x .889)		(1.016 x 1.016)		(1.270 x 1.270)
	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness	Dielectric	Thickness
0.04	AS7	5	AS7	6	AS7	10
0.06	AS7	4	AS7	5	AS7	8	AS2	5	AS2	10
0.08	ES1	10	AS7	4	AS7	6	AS7	10	AS2	7	AS2	9
0.1	ES1	8	ES1	11	AS7	5	AS7	9	AS2	5	AS2	7	AS2	10
0.2	ES1	5	ES1	7	ES1	10	AS7	4	AS7	7	AS7	9	AS2	5	AS2	7	AS2	10
0.3	IS1	6	ES1	4	ES1	6	ES1	11	AS7	4	AS7	7	AS7	9	AS2	5	AS2	7
0.4	IS1	5	IS1	7	ES1	5	ES1	9	ES1	15	AS7	5	AS7	7	AS7	9	AS2	5
0.5	IS1	4	IS1	5	ES1	4	ES1	7	ES1	11	AS7	4	AS7	5	AS7	7	AS2	4
0.6	KS3	6	IS1	5	IS1	7	ES1	6	ES1	10	ES1	15	AS7	4	AS7	6	AS7	9
0.8	MS1	8	KS3	6	IS1	5	ES1	5	ES1	7	ES1	10	ES1	15	AS7	4	AS7	7
1.0	MS1	7	KS3	5	IS1	4	IS1	7	ES1	6	ES1	8	ES1	10	AS7	4	AS7	5
1.2	MS1	6	KS3	4	IS1	4	IS1	6	ES1	5	ES1	7	ES1	9	AS7	3	AS7	5
1.5	MS1	5	MS1	4	KS3	5	IS1	5	ES1	4	ES1	6	ES1	7	ES1	10	AS7	4
1.8	MS1	4	MS1	4	KS3	4	IS1	4	IS1	6	ES1	5	ES1	6	ES1	8	ES1	11
2.0	MS1	4	MS1	8	KS3	4	KS3	7	IS1	6	ES1	4	ES1	5	ES1	7	ES1	11
2.2	RS1	4	MS1	7	KS3	4	KS3	6	IS1	5	IS1	7	ES1	5	ES1	7	ES1	10
2.7	RS1	8	MS1	6	MS1	6	KS3	5	IS1	4	IS1	6	ES1	4	ES1	5	ES1	8
3.3	RS1	7	RS1	10	MS1	5	KS3	4	KS3	6	IS1	5	IS1	7	ES1	4	ES1	7
3.9	RS1	6	RS1	9	MS1	4	MS1	67	KS3	5	IS1	4	IS1	6	IS1	8	ES1	6
4.7	RS1	5	RS1	7	RS1	11	MS1	56	KS3	4	KS3	6	IS1	5	IS1	6	ES1	5
5.6	RS1	4	RS1	6	RS1	10	MS1	5	MS1	7	KS3	5	IS1	4	IS1	5	ES1	4
6.8	RS1	3	RS1	5	RS1	8	MS1	4	MS1	6	KS3	5	KS3	6	IS1	4	IS1	7
8.2	SS3	6	RS1	4	RS1	7	MS1	4	MS1	5	KS3	4	KS3	5	KS3	7	KS3	10
10	SS3	5	RS1	4	RS1	5	RS1	9	MS1	4	MS1	6	KS3	4	KS3	5	KS3	8
12	SS3	4	SS3	6	RS1	5	RS1	8	RS1	11	MS1	5	MS1	7	KS3	4	KS3	7
15	US1	6	SS3	5	RS1	4	RS1	6	RS1	10	MS1	4	MS1	6	MS1	7	KS3	6
18	US1	5	SS3	4	SS3	6	RS1	5	RS1	8	RS1	11	MS1	4	MS1	6	KS3	5
20	US1	5	SS3	4	SS3	5	RS1	4	RS1	8	RS1	11	MS1	4	MS1	5	KS3	4
22	US1	4	US1	6	SS3	5	RS1	4	RS1	7	RS1	9	MS1	4	MS1	5	KS3	4
27	US1	4	US1	5	SS3	4	RS1	4	RS1	6	RS1	8	MS1	3	MS1	4	MS1	6
33	VS1	4	US1	4	US1	6	SS3	6	RS1	5	RS1	6	RS1	11	MS1	4	MS1	5
39	ZS1	6	US1	4	US1	5	SS3	5	RS1	4	RS1	5	RS1	7	RS1	10	MS1	4
47	ZS1	5	ZS1	7	US1	5	SS3	4	SS3	6	RS1	5	RS1	6	RS1	8	MS1	4
56	ZS1	4	ZS1	6	VS1	5	US1	7	SS3	5	RS1	4	RS1	5	RS1	7	RS1	10
68	ZS1	4	ZS1	5	VS1	4	US1	6	SS3	5	SS3	6	RS1	4	RS1	6	RS1	9
82	ZS4	7	ZS1	4	ZS1	7	VS1	6	SS3	4	SS3	5	SS3	7	SS3	10	RS1	7
100	ZS4	6	ZS4	8	ZS1	6	VS1	5	US1	6	SS3	5	SS3	6	SS3	8	RS1	6
120	ZS4	4	ZS4	7	ZS1	5	ZS1	8	VS1	6	SS3	4	SS3	5	SS3	7	RS1	5
150	ZS4	4	ZS4	5	ZS1	4	ZS1	7	VS1	5	VS1	7	SS3	4	SS3	5	RS1	4
180	ZS6	4	ZS4	5	ZS4	7	ZS1	6	VS1	4	VS1	6	VS1	8	US1	8	SS3	7
200	ZS6	4	ZS4	4	ZS4	6	ZS1	5	ZS1	8	VS1	5	VS1	7	US1	7	SS3	6
220	ZS6	4	ZS6	5	ZS4	6	ZS1	4	ZS1	7	VS1	5	VS1	6	US1	6	SS3	6
270			ZS6	4	ZS4	5	ZS4	8	ZS1	6	VS1	4	VS1	5	US1	5	SS3	5
330					ZS4	4	ZS4	7	ZS1	5	ZS1	7	VS1	4	US1	4	US1	7
390					ZS6	4	ZS4	6	ZS1	4	ZS1	6	ZS1	7	ZS1	10	US1	6
470					ZS6	4	ZS4	5	ZS4	7	ZS1	5	ZS1	6	ZS1	8	US1	5
560							ZS4	4	ZS4	6	ZS1	4	ZS1	5	ZS1	7	US1	4
680							ZS6	5	ZS4	5	ZS4	8	ZS1	5	ZS1	6	VS1	4
820							ZS6	4	ZS6	6	ZS4	7	ZS1	4	ZS1	5	ZS1	7
1000									ZS6	5	ZS4	5	ZS4	7	ZS1	4	ZS1	6
1200									ZS6	4	ZS4	4	ZS4	6	ZS4	7	ZS1	5
1500											ZS6	5	ZS4	5	ZS4	6	ZS1	4
1800											ZS6	4	ZS6	6	ZS6	5	ZS4	8
2200													ZS6	5	ZS4	4	ZS4	6
2700													ZS6	4	ZS6	5	ZS4	5
3300																	ZS6	6

Passive Plus offers a comprehensive range of Single Layer Capacitors (SLC), designed to meet the diverse needs of the engineering community. PPI Single Layer Capacitors come in four distinct varieties, each customized to specific applications, offering precision, reliability, and customization options that cater to your unique requirements.

PPI Single Layer Capacitors deliver tight tolerances, precision, and reliability for any engineering project. Explore each SLC type to determine the perfect fit for your application or contact PPI (insert contact us links) and our team can work with you to determine the best solution.

In addition to the wide-range of multi-layer capacitors, PPI can supply high quality Single Layer Capacitors according to the engineer’s specifications to develop an SLC which will meet the engineer’s requirements.

Once these specifications are confirmed, PPI will then supply the customer with a Spec Sheet with pricing and delivery options.

Please contact PPI directly at 631-425-0938 or by email at sales@passiveplus.com to start this process.

Capacitance, Dissipation Factor, Insulation Resistance, Metallization, Voltage, Temperature Coefficient and Physical Dimensions per customer specifications.
