Single Layer Ceramic Capacitors (SLC)

Standard Edge to Edge Capacitors

Standard Edge to Edge Capacitors are engineered with tight tolerances to meet specific size, shape, and value requirements. With thicknesses of up to 25+ mils, these capacitors utilize temperature-stable, low-loss materials and special terminations to enhance the soldering process. The chip size, shape, and electrical properties can be precisely determined based on the dielectric material, ensuring optimal performance in a variety of applications.

Single Layer Capacitors

All Parts Avaliable in Non-Magnetic Termination

Series
Standard Edge to Edge
Frequency
Up to 100GHz
Capacitance Range
0.04pF to 10000pF
Application
DC Blocking, RF Bypass, Filter & Tuning
Data Sheet

Quotes & Samples
Learn More

Border Caps

Border Caps feature a topside electrode strategically withdrawn from the edges. This design increases the distance between electrodes, significantly reducing the risk of shorting during epoxy die-mounting. Widely employed for optical recognition-based assembly, Border Capacitors provide a reliable solution where avoiding shorts is critical.

Single Layer Capacitors

All Parts Avaliable in Non-Magnetic Termination

Series
Border Cap
Frequency
Up to 100GHz
Capacitance Range
0.04pF to 3300pF
Application
DC Blocking, RF Bypass, Filter & Tuning
Data Sheet

Quotes & Samples
Learn More

Twin Caps

Twin Caps offer a single full electrode on one side of the capacitor and split electrodes on the other side. This is a three-terminal capacitor which can be used as a two capacitors with a common electrode or as serially connected capacitors so that connections may be made on one side of the chip only (surface mount). This design is often used in microstrip coupling to eliminate lead inductance and raise the self resonant frequency.

Standard dimensional tolerance for length and width is ±15% up to 20 mils. For dimensions greater than 20 mils, standard tolerance is ±10%. In cases where dimensions can not be exceeded, insert “M” to signify a maximum dimension. The thickness tolerance is ±1.5 mils.

The stated capacitance value for the Twin Caps is for the combined value of the pads.

Single Layer Capacitors

All Parts Avaliable in Non-Magnetic Termination

Series
Twin Cap
Frequency
Up to 30GHz
Capacitance Range
0.06pF to 1200pF
Application
High Accuracy, Elimination of Wirebond
Data Sheet

Quotes & Samples
Learn More

Arrays

Array Caps are used where arrays of capacitors are needed, usually for decoupling or bypass of GaAs integrated circuits. Standard arrays can contain up to 10 capacitors starting at 0.04pF. Typical overall dimensions range start at 20×10 mils.Array Caps can be fully customized to meet Customers’ application requirements.

Array Caps are available with (B) borders or without borders (A) surrounding the edges to help prevent epoxy shorts and aid optical recognition systems.

The stated capacitance value for the Array Caps is for the value of each individual pad.

Single Layer Capacitors

All Parts Avaliable in Non-Magnetic Termination

Series
Array
Frequency
Up to 30GHz
Capacitance Range
0.4pF to 3300pF
Application
Capacitor Array, Suited for Decoupling, DC Blocking for GaAsICs
Data Sheet

Quotes & Samples
Learn More

Passive Plus offers a comprehensive range of Single Layer Capacitors (SLC), designed to meet the diverse needs of the engineering community. PPI Single Layer Capacitors come in four distinct varieties, each customized to specific applications, offering precision, reliability, and customization options that cater to your unique requirements.

PPI Single Layer Capacitors deliver tight tolerances, precision, and reliability for any engineering project. Explore each SLC type to determine the perfect fit for your application or contact PPI (insert contact us links) and our team can work with you to determine the best solution.

In addition to the wide-range of multi-layer capacitors, PPI can supply high quality Single Layer Capacitors according to the engineer’s specifications to develop an SLC which will meet the engineer’s requirements.

Once these specifications are confirmed, PPI will then supply the customer with a Spec Sheet with pricing and delivery options.

Please contact PPI directly at 631-425-0938 or by email at sales@passiveplus.com to start this process.

Capacitance, Dissipation Factor, Insulation Resistance, Metallization, Voltage, Temperature Coefficient and Physical Dimensions per customer specifications.

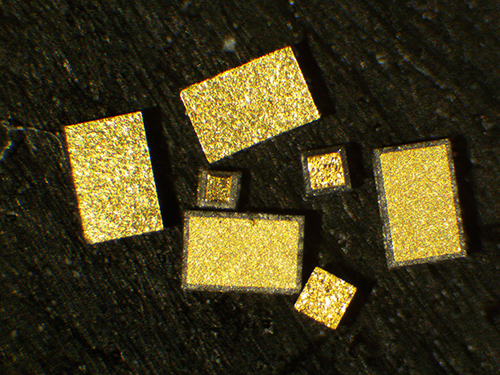

slc-cover
