Custom Capacitor Assemblies

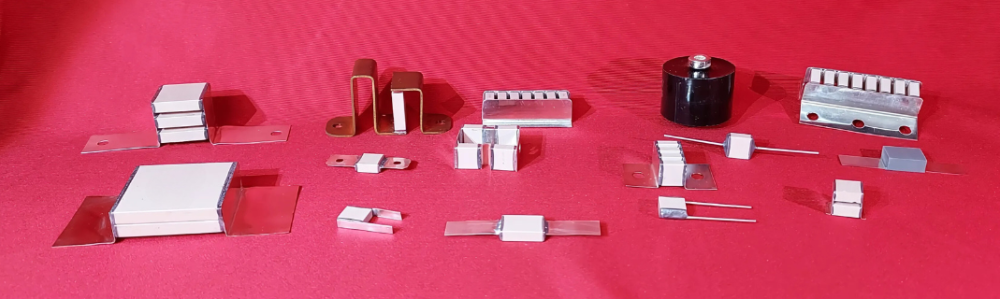

custom assemblies

Passive Plus offers Capacitor Assemblies for high power requirements. Typical assemblies are configured in series and/or parallel combinations, producing higher voltage/current handling capabilities, extended capacitance range and tighter tolerances.

To get started, simply send us either a mechanical drawing or circuit conditions and we can recommend a solution. All components are 100% up-screened for Partial Discharge and Sono-scanned. All assemblies include a 100hr Military burn in.

Product Features:

High Operating Voltage, High Operating Current, Extended Capacitance, Tighter Tolerance, High Reliability, High Q, Ultra-low ESR, Non-Magnetic

Typlical Application Fields:

High Power RF, Medical Electronics, Broadcast, Semiconductor Manufacturing, High Magnetic Environments, Inductive Heating

Capacitance and Voltage:

By Buyer’s requirement using existing drawings, mechanical sketches, or we can help with capable modeling of assemblies thermal rise predictions.
