General Purpose High Quality Capacitors (EIA)

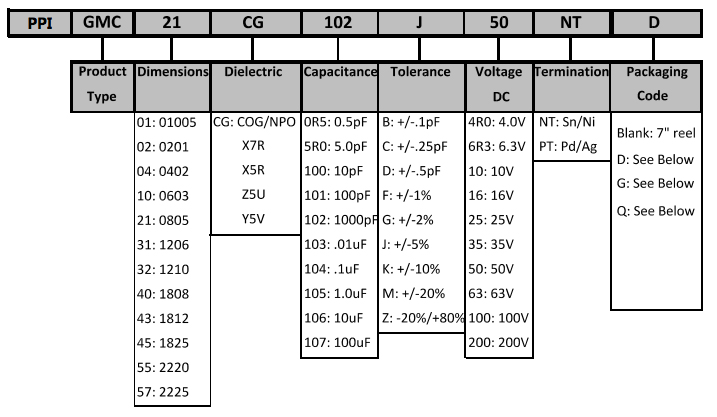

GMC Series

Dielectric

Case Size
1005
0201
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
Series
01
02
04
10
21
31
32
40
43
45
55
57

Features

  • Large capacitance values in small sizes
  • Excellent high frequency characteristics
  • All PPI Caps conform to EIA Specifications

Applications

  • Can be used on surface mount assembly equipment
  • Our fully integrated manufacturing and total quality control system ensure unprecedented high standards of quality and reliability.

Construction

  • Constructed by screen printing alternative layers of internal metallic electrodes onto ceramic dielectric materials and firing into a concrete monolithic body, then completed by application of metal end terminations which are fired to assure permanent bonding with the individual internal electrodes.

Capacitance Value & Tolerance

Determined by circuit requirements.

Voltage

Determined by circuit requirements.

Capacitor Size

Select the smallest unit permitted by the circuit constraints that provides the required capacitance and voltage rating.

Capacitor Termination

Nickel barrier is standard and recommended for units exposed to repeated solder cycles, to minimize leaching of the termination.
