Surface Mount Conical Inductors

PPI’s Surface Mount Conical Inductors are designed for high-frequency applications, offering low insertion loss and High-Q factors. These robust components are ideal for communication systems, RF test setups, and other demanding electronic applications.

Surface-Mount Configuration: Designed for high-frequency SMT applications.
High Performance: Designed for RF applications with low insertion loss and high Q factors
Applications: RF test, transmission amplifiers, aerospace, and defense.

070SM

070SM Data Sheet

Part Number	L µH @ 10 MHz	DCR Ω NOM	Current Rating mA DC	Upper Frequency Limit GHz	Turns	Wire Size AWG
POWDERED IRON CORE
PPI-070SM-0R165-625-G6	0.165	0.080	625	50	15	38
PPI-070SM-0R265-425-G6	0.265	0.170	425	50	20	40
PPI-070SM-0R390-340-G6	0.390	0.280	340	50	25	42
PPI-070SM-0R550-235-G6	0.550	0.600	235	50	30	44
PPI-070SM-0R700-190-G6	0.700	0.820	190	50	34	45
PPI-070SM-0R800-175-G6	0.800	1.00	175	50	38	46
PPI-070SM-1R050-150-G6	1.050	1.50	150	50	43	47

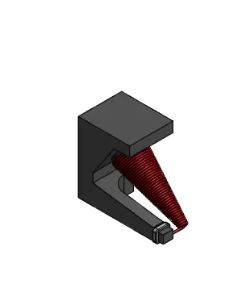

100SMNL

100SMNL Data Sheet

Part Number	L µH @ 10 MHz	DCR Ω NOM	Current Rating mA DC	Upper Frequency Limit GHz	Turns	Wire Size AWG
POWDERED IRON CORE
PPI-100SMNL-0R20-655-G6	0.20	0.10	655	40	19	38
PPI-100SMNL-0R44-452-G6	0.44	0.21	452	40	25	40
PPI-100SMNL-0R58-302-G6	0.58	0.47	302	40	31	42
PPI-100SMNL-1R00-241-G6	1.00	0.74	241	40	39	44
PPI-100SMNL-1R54-140-G6	1.54	0.74	241	40	49	47

100SMNR

100SMNR Data Sheet

Part Number	L µH @ 10 MHz	DCR Ω NOM	Current Rating mA DC	Upper Frequency Limit GHz	Turns	Wire Size AWG
POWDERED IRON CORE
PPI-100SMNR-0R20-655-G6	0.20	0.10	655	40	19	38
PPI-100SMNR-0R44-452-G6	0.44	0.21	452	40	25	40
PPI-100SMNR-0R58-302-G6	0.58	0.47	302	40	31	42
PPI-100SMNR-1R00-241-G6	1.00	0.74	241	40	39	44
PPI-100SMNR-1R54-140-G6	1.54	0.74	241	40	49	47
